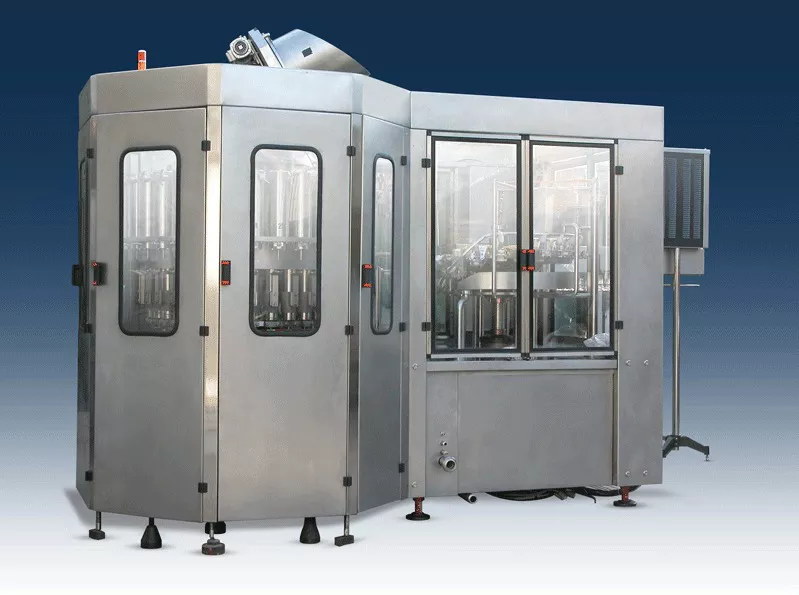

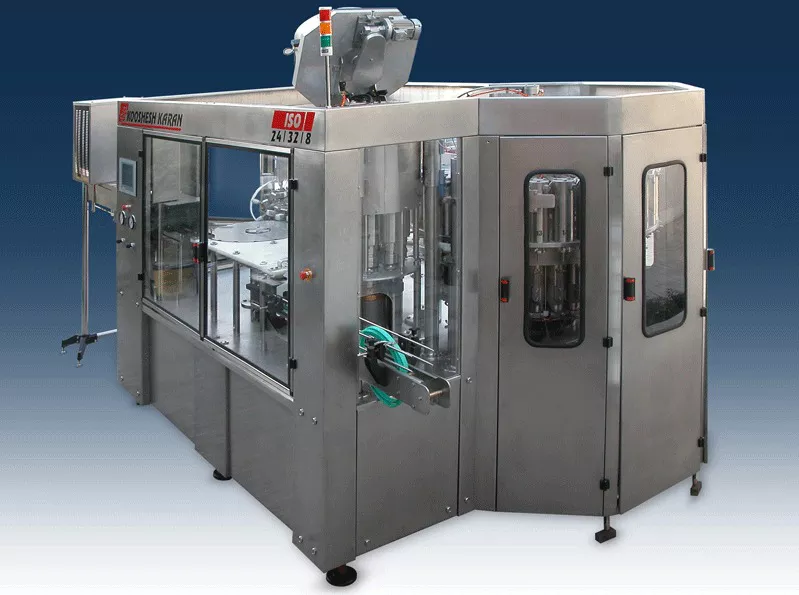

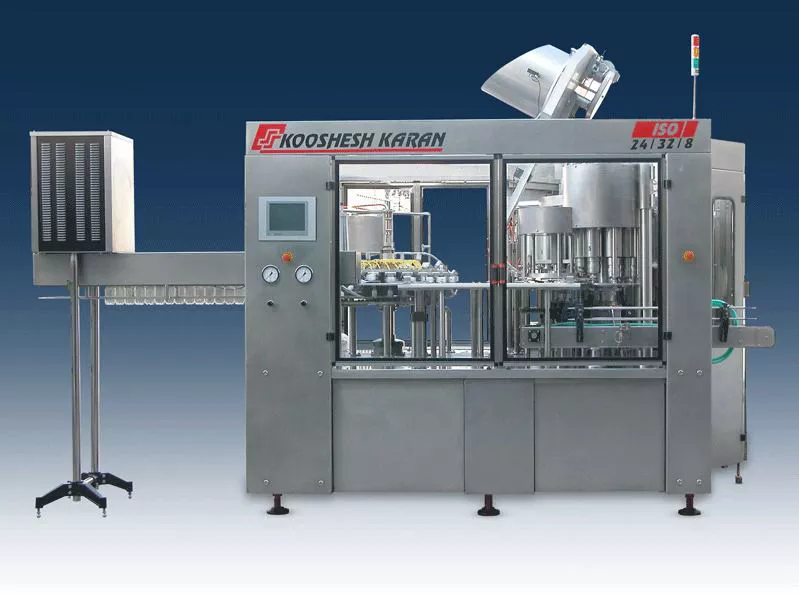

Rotary TRI -Block Machine Model TB-GF 24/32/8 The machine has 3 compartments on single frame: Rinsing section with 24 grippers. Filling section with 32 nozzles. Capping section with 8 heads (for plastic caps). Application : - For packing liquids without gas like water , fruit juice ,yogurt drink, herbal drinks, etc. in PET bottles from 250 up to 2250 ml. Specifications: - The movement of container in machine is handled by the neck of container (Neck Hold) and needs minimum change parts. -The container inlet mechanism is air conveyor and can be connected directly to bottle unscrambler or blow molding machine. - The filling principle is "Gravity" type. - The capper heads are equipped with adjustable torque magnetic clutches. - All the parts in contact with product is made of stainless steel 316 and the machine cladding is made of stainless steel 304. - The machine has all around safety doors. Control mechanism : The machine is full automatic in operation and is equipped with electronic control (PLC), Touch screen color monitor and electronic speed control (frequency inverter). The machine is equipped with water and air pressure control equipments. Fabrication Materials: - All electric, electronic and pneumatic components used in machine is west European made.
